Planers equiptop: MAGRA GmbH

Planers equiptop

Simple cycle control for planing and grinding grooves
Touch screen for data entry via simple dialogue
Stepper motors for vertical feed
AC motor for rapid feed
Cross feed by continuous or stepper servo motor
Meehanite cast iron base offers great thermal stability and optimal damping
Scraped slides coated with Turcite-B for long-lasting precision
Automatic centralized lubrication
Maintenance-free lifetime greased grinding spindle

Type ADC: With top dressing unit with compensation Available from model ESG 1020 with complete enclosure

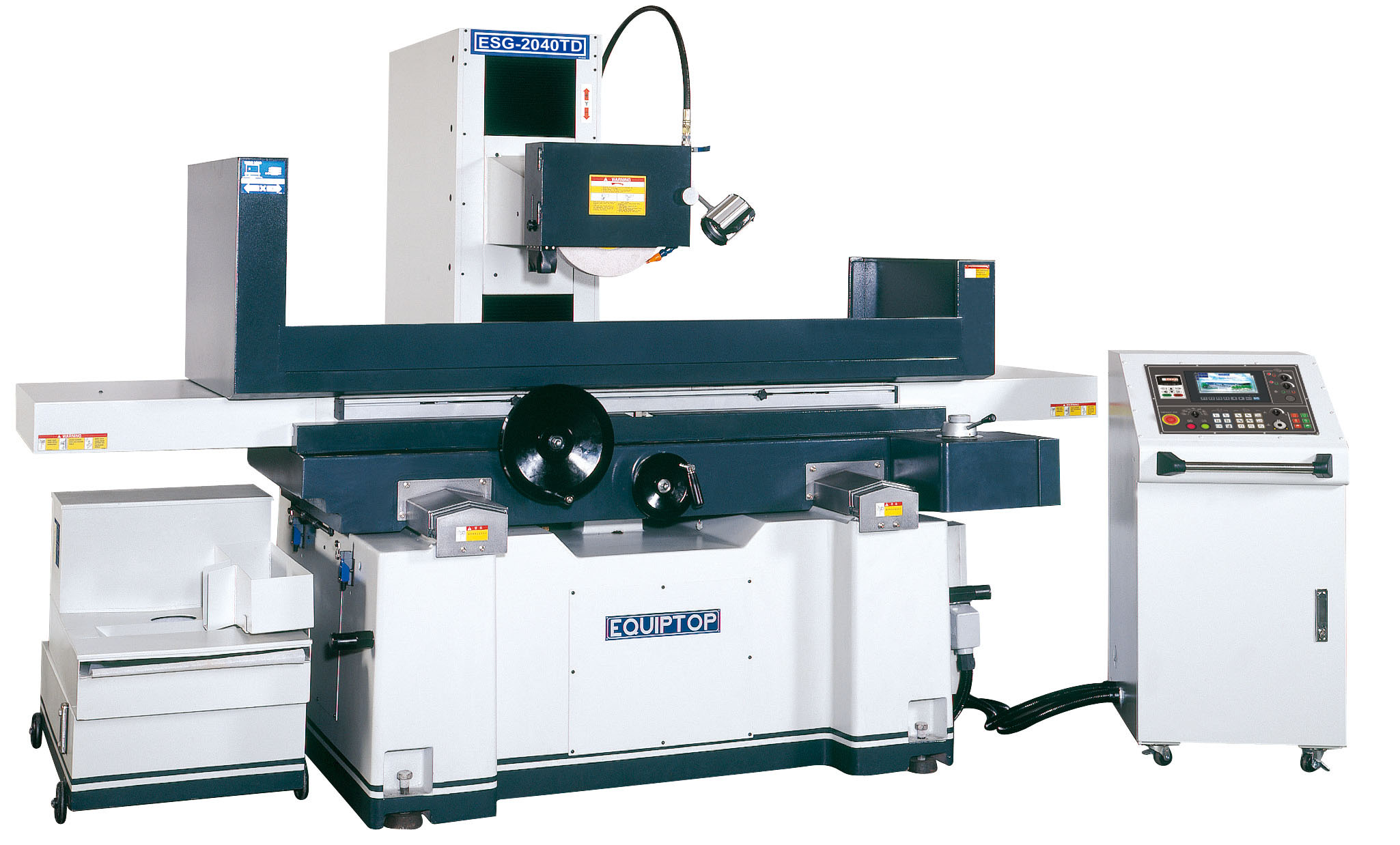

EQUIPTOP ESG 2040 TD/ADC

Table 1000 x 500 mm
Continuous table speed 5 - 20 mm/min
Speed 1450 rpm
Power 5.5 kW
Grinding wheel 355 x 50 x 127 mm
Dimensions 4500 x 2200 x 2100 mm
Weight 4800 kg

Request for quotation

EQUIPTOP ESG 1632 TD/ADC

Table 800 x 400 mm
Continuous table speed 5 - 20 mm/min
Speed 1450 rpm
Power 5.5 kW
Grinding wheel 355 x 50 x 127 mm
Dimensions 3290 x 1950 x 2050 mm
Weight 4000 kg

Request for quotation

EQUIPTOP ESG 1228 TD/ADC

Table 700 x 300 mm
Continuous table speed 5 - 20 mm/min
Speed 1450 rpm
Power 5.5 kW
Grinding wheel 304 x 31.75 x 76.2 mm
Dimensions 2950 x 1950 x 2050 mm
Weight 3520 kg

Request for quotation

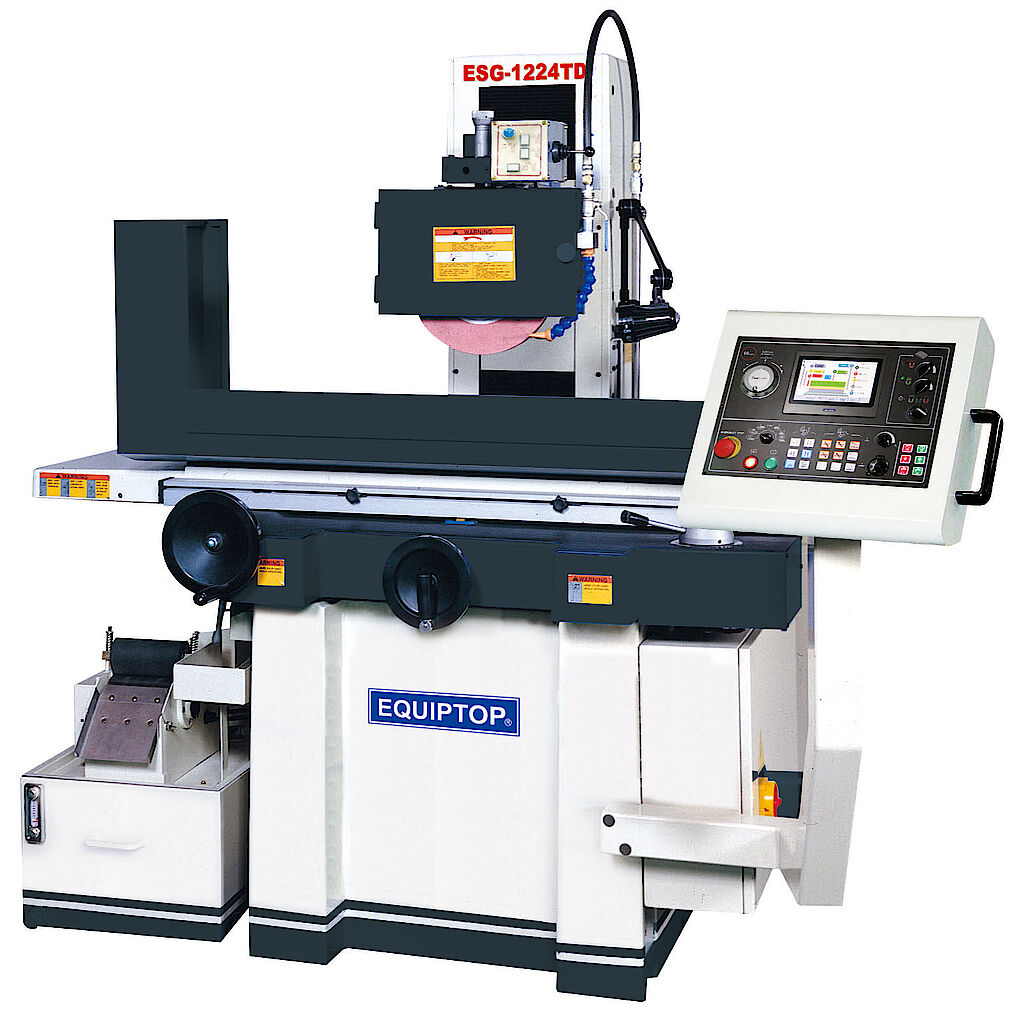

EQUIPTOP ESG 1224 TD/ADC

Table 600 x 300 mm
Continuous table speed 5 - 20 mm/min
Speed 1450 rpm
Power 3.7 kW
Grinding wheel 304 x 31.75 x 76.2 mm
Dimensions 2700 x 1600 x 1850 mm
Weight 1990 kg

Request for quotation

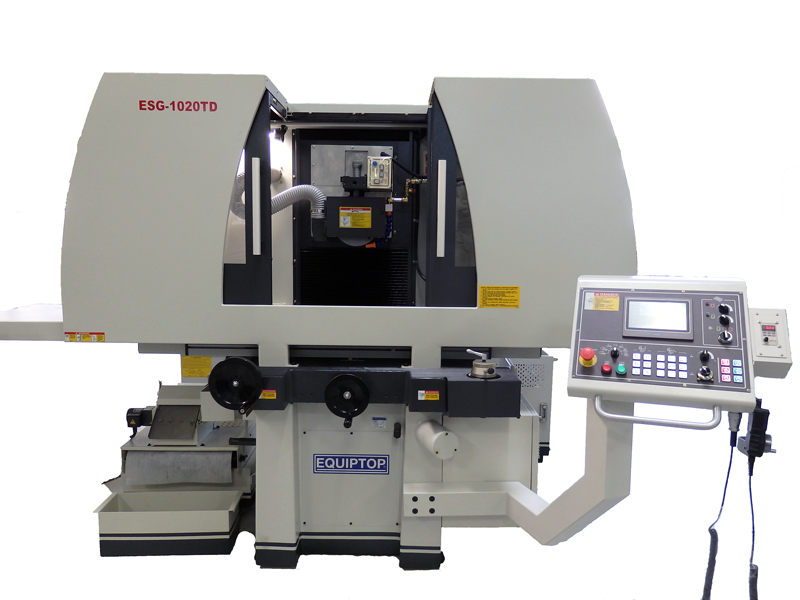

EQUIPTOP ESG 1020 TD

Table 500 x 250 mm
Continuous table speed 5 - 20 mm/min
Speed 2850 rpm
Power 2.2 kW
Grinding wheel 203 x 19 (25) x 31.75 mm
Dimensions 2400 x 1450 x 1750 mm
Weight 1810 kg

Request for quotation

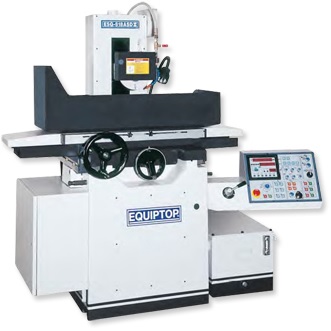

EQUIPTOP ESG 818 TD

Table 450 x 200 mm
Continuous table speed 5 - 20 mm/min
Speed 2850 rpm
Power 1.5 kW
Grinding wheel 203 x 12.7 (19) x 31.75 mm
Dimensions 1810 x 1285 x 1680 mm
Weight 1200 kg

Request for quotation
